Description

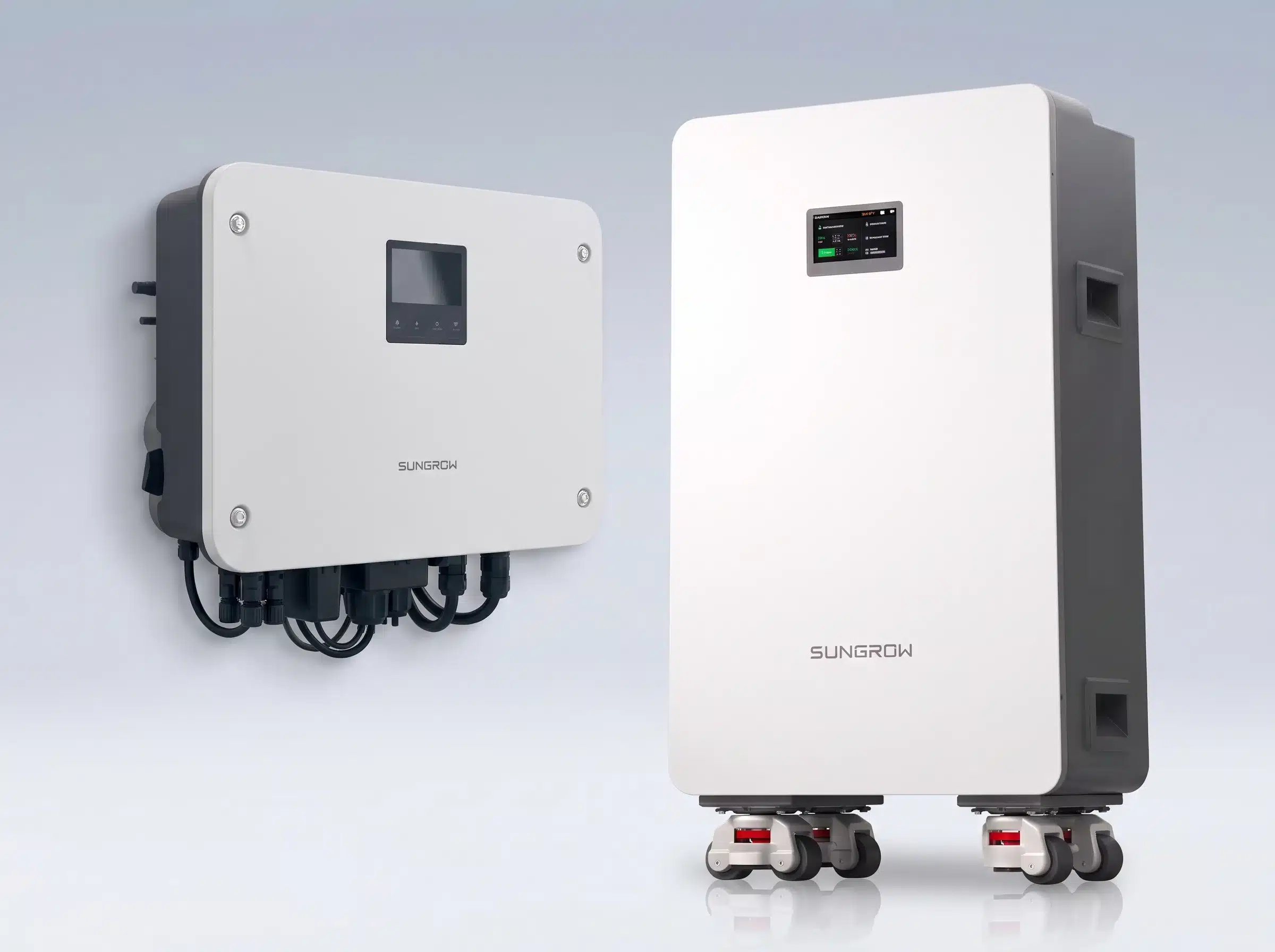

MG10TL + MBL160
10 kW Three-Phase Hybrid Inverter + 16.08 kWh LFP Battery Residential Energy Storage System with 25 kWp PV input (250% oversizing), 3 battery inputs for up to 48.24 kWh storage, 0 ms seamless UPS backup, patented PID Zero technology and integrated AFCI 3.0R arc protection. Ideal for larger homes and small businesses in Thailand.
Key Specifications – MG10TL Inverter
| Parameter | Value |
|---|---|
| Nominal Output Power | 10 kW (3/N/PE, 400 V) |
| Max. Output Apparent Power | 11 kVA |
| Max. PV Input Power | 25 kWp (max. usable 16 kW, 250% oversizing) |
| MPPT / Strings | 3 trackers / 1 string each (20 A per string, 25 A Isc) |
| MPPT Voltage Range | 90 – 950 V (max. PV input voltage 1000 V) |
| Battery Inputs | 3 (40 – 60 V, compatible with MBL120 / MBL160 / MBL160-PF / 3rd-party LV) |
| Max. Battery Charge/Discharge | 10 kW / 220 A |
| Efficiency (Max / European) | 97.7% / 97.1% |
| Backup (on-grid) | up to 45.36 kW connectable backup load (63 A) |
| Backup (off-grid) | 10 kW / 11 kVA, 200% peak power for 10 s |
| Backup Switch Time | 0 ms (seamless UPS) |
| Ingress Protection / Anti-corrosion | IP66 / C5 |
| Safety Features | Integrated AFCI 3.0R, PID Zero, leakage & anti-islanding, DC switch |
| Noise Level (typical) | 35 dB(A) |
| Display / Communication | 4.3″ colour LCD / RS485, WLAN, Ethernet, CAN (DI×1, DO×3) |
| Operating Temperature | -25 °C to 60 °C |
| Dimensions (W×H×D) | 636 × 536 × 281 mm |
| Weight | ≤ 50 kg |
| Certification | IEC 62109-1/-2, IEC 62477-1, IEC 62920, IEC 61727, EN 55011 u. v. m. |
Available in three sizes: MG10TL (10 kW) • MG12TL (12 kW) • MG15TL (15 kW, 37.5 kWp PV). This page describes the MG10TL.
Included Battery – MBL160 (16.08 kWh)
High-safety LFP battery with 8,000-cycle lifespan, touchscreen and up to 5 types of safety detection.
This outstanding LFP (LiFePO4) battery is ONLY sold together with the Sungrow Inverter as a set or for owners who want to expand their system!
| Parameter | Value |
|---|---|
| Nominal Energy | 16.08 kWh |
| Cycle Life | 8,000 cycles (90% DoD, 0.5C, 25 °C) |
| Battery Type | LiFePO4 (LFP) |
| Nominal Voltage | 51.2 V (range 44.8 – 57.6 V) |
| Nominal Charge/Discharge Current | 157 A |
| Max. Charge/Discharge Current | 200 A (peak 210 A charge 1 s / 300 A discharge 3 s) |
| Display / Communication | LCD touchscreen (SOC, voltage, current) / CAN, RS485 |
| Safety Features | Over/under voltage, over-current, over/under temperature, integrated DC breaker |
| Operating Temperature | Charge 0 – 55 °C / Discharge -20 – 55 °C |
| Ingress Protection / Location | IP20 / Indoor |
| Parallel Modules | up to 20 (320 kWh) – 3 inputs on MG10TL = 48.24 kWh |
| Installation | Floor-mounted (built-in casters) or wall-mounted (accessories) |
| Dimensions (W×H×D) | 432 × 855 × 243 mm |
| Weight | 114.2 kg |
| Certification | CE, IEC 62619, IEC 62477, UN 38.3, MSDS, RoHS |
Available in three sizes: MBL050 (5.12 kWh) • MBL120 (11.8 kWh) • MBL160 (16.08 kWh).

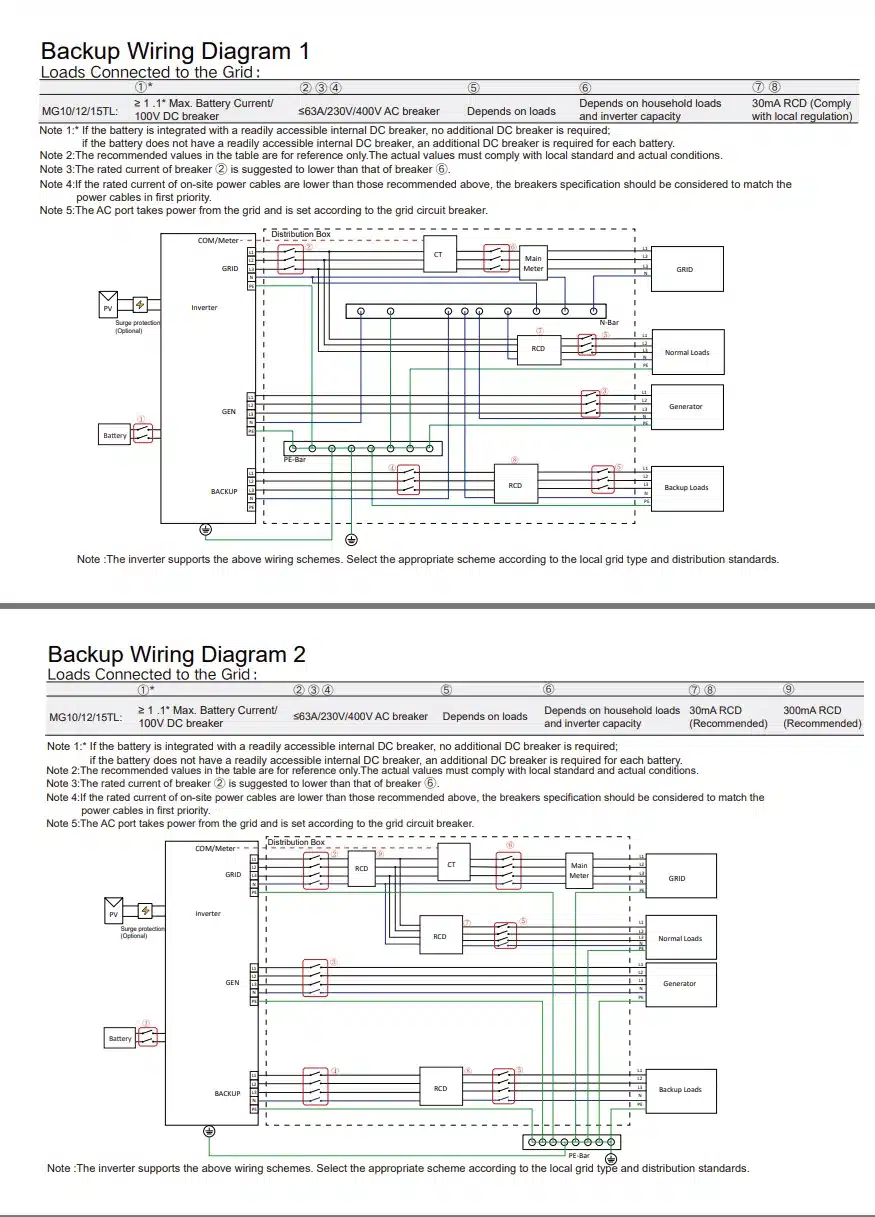

Backup Wiring Diagram
Backup Wiring Diagram 1 & 2 – Loads Connected to the Grid (MG10/12/15TL)
Downloads
Based on official Sungrow datasheets Version 4 (2026) • For latest information, pricing and installation in Thailand contact Solaris Green Energy
