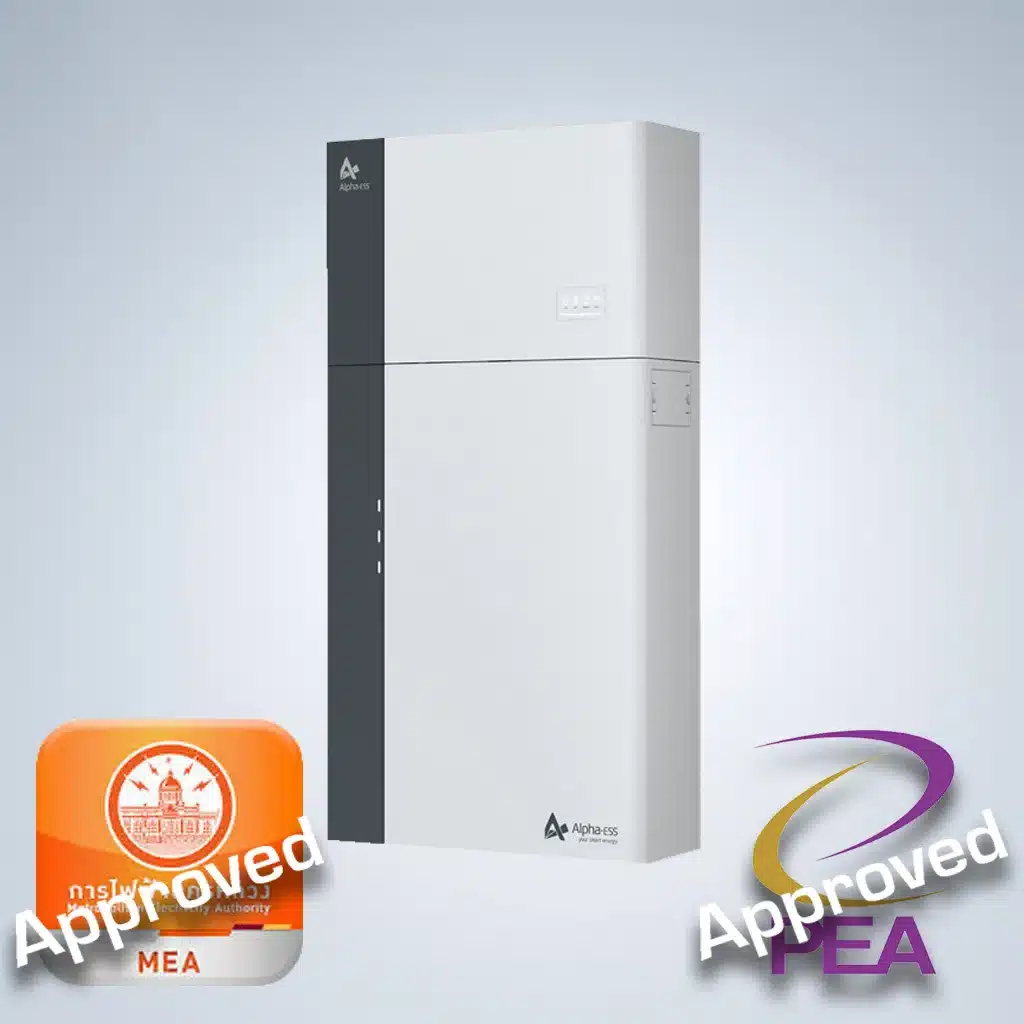

Alpha Ess Smile-G3-S5

NEW Generation! The NEW Almighty Knight!
5kW single phase Residential Hybrid Energy Storage System (ESS) is the 3rd Generation of the successful Alpha Smile 5!

Hybrid inverter

  • Max. PV input: max. 10.0 kW (200% PV Input)
  • Max PV Input Current: 15A
  • Nominal Output: 5 kW AC
  • Max. Charging/Discharging Current: 60 A
  • Backup: UPS (200% overload for 30s if using min. 2 batteries))
  • Off-Grid or Hybrid capable
  • Parallel function (in Off-Grid mode)
  • 3 Modi: DC, AC or Hybrid coupled (with grid forming function)
  • Weight: 12kg
  • Product warranty: 5 years (10 years warranty optional)

Battery Module

This outstanding LFP (LiFePO4) battery is ONLY sold together with the Alpha Smile G3 Inverter as a set or for Smile G3 owners who want to expand their system!

  • Capacity: 10.1kWh (DOD 95%)
  • Usable Capacity: 9.6kWh
  • Nominal Voltage: 96 V
  • Performance warranty: 10 years or 8,000 cycles
  • Product warranty: 5 years
  • Storage capacity up to 60.5 kWh
  • 6 Max. modules in parallel

Only qualified Installers (certified by Alpha ESS or Solaris) are allowed to install and commission the Alpha ESS products!

In Stock

SKU: Alpha Ess Smile-G3-S5 Category:




Datasheet Alpha Ess Smile-G3Datasheet Alpha Ess Smile-G3


Alpha Smile G3-S5 Manual_EN_SMILE-G3_V01.01092022Operation & Maintenance Manual Alpha Ess Smile-G3
